Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD1-/15R/NW-50B is a pressure regulator intended for use in the control and regulation of gas pressure in industrial systems. This unit combines a Class A pressure regulator (EN 88) with a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane. It features an integrated pilot lamp and offers quick opening and closing operation.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)

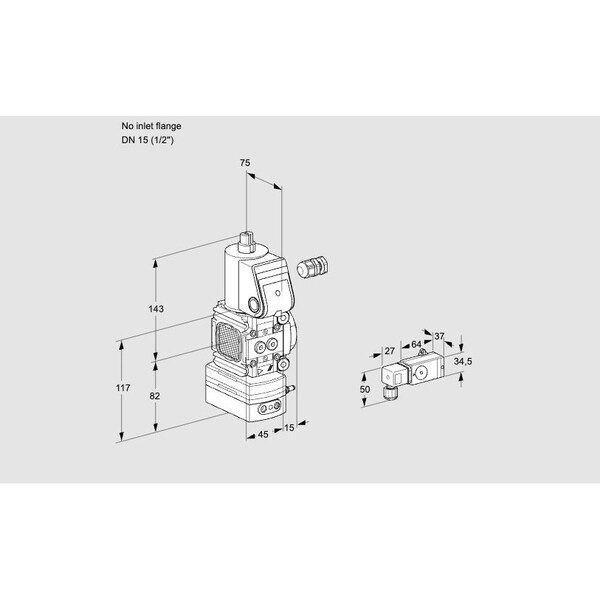

• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland, mains voltage 24 V DC
• Protection rating: IP65
• Certifications: FM, SA approved; EU certified
• No inlet flange; size 1 configuration
• Accessories include right-side pressure switch (30–110 mbar) with test point at outlet, left side includes two screw plugs
