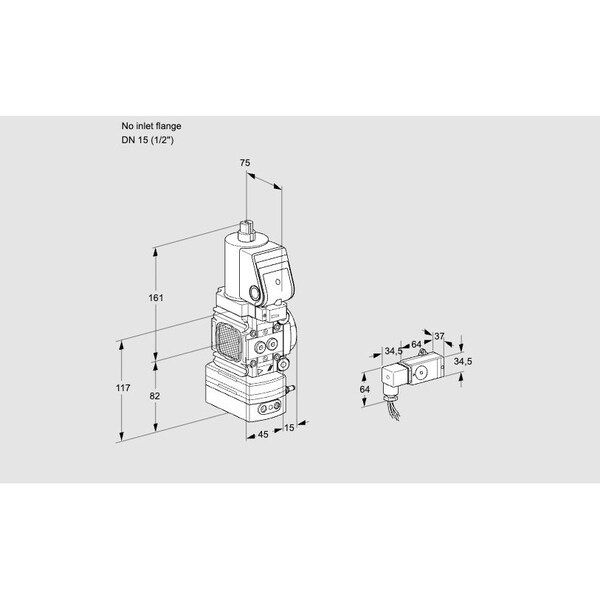

Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD1T-/15N/NQSR-100B is a pressure regulator intended for use in controlling and monitoring gas pressure within industrial systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it compatible with gas, air, and biologically produced methane. It features an integrated pilot lamp for status indication and is constructed to meet IP65 standards for ingress protection.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland
• Features rapid actuation
• FM and SA approved; EU certified
• Size 1 configuration with no inlet flange
• Accessories include right-side mounted pressure switch (30–110 mbar) with test point, left side screw plugs, reduced valve seat
