Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD1-/15R/NW-100B is a pressure regulator intended for regulation and monitoring of gas pressure. It integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. The unit features rapid actuation capability, an integrated pilot lamp, and is rated to meet IP65 enclosure requirements.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland on right side of connection box
• Valve seat reduced; size 1 configuration
• FM and SA approved; EU certified

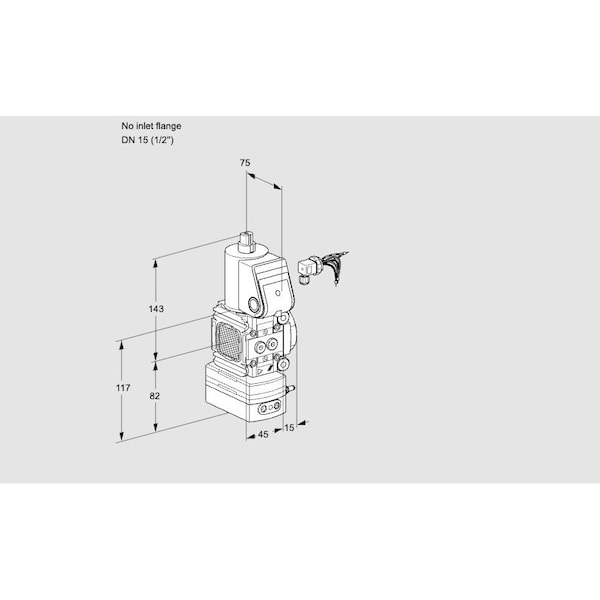

• No inlet flange included
• Accessories: right-side test point for outlet pressure switch (30–110 mbar), left-side two screw plugs
