Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD1-/25R/NW-100A is a pressure regulator **intended for use in applications requiring gas pressure regulation**. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it suitable for use with gas, air, and biologically produced methane. It features an outlet connection of DN 15 (1/2" Rp internal thread), operates at mains voltage of 24 V DC, and includes electrical connections via M20 cable gland.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation mechanism
• Pilot lamp indicator included
• Protection rating: IP65
• FM and SA approved; EU certified

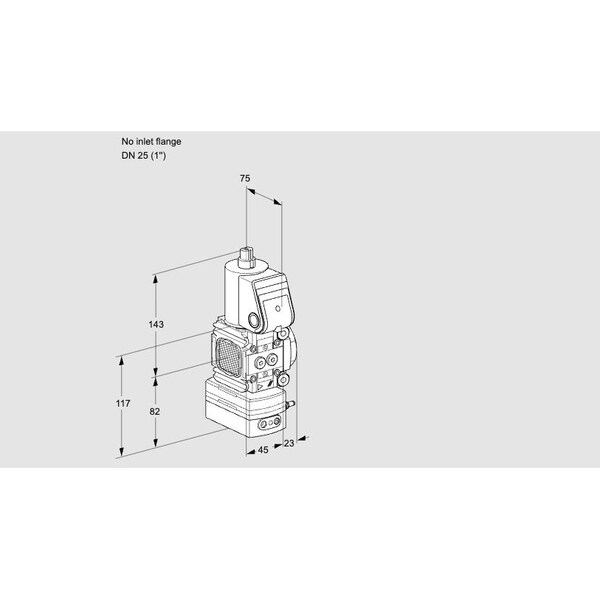

• Size designation: Size 1; no inlet flange
• Valve seat reduced design
• Right-side accessories: Pressure switch (30–110 mbar) with test point for outlet pressure
• Left-side accessories: Two screw plugs
