Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD1T-/15N/NQ-100B is a pressure regulator intended for use in applications requiring gas pressure regulation. It features rapid actuation and integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features an integrated pilot lamp for status indication.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland, mains voltage 24 V DC
• IP65 rated enclosure
• FM and SA approved; EU certified

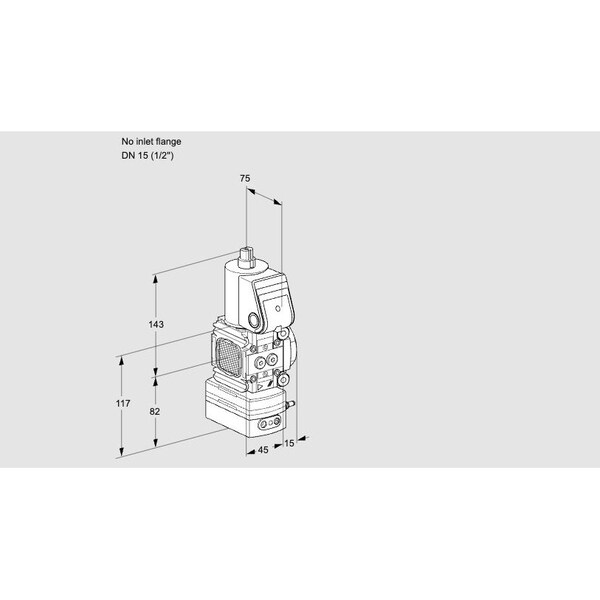

• No inlet flange; size 1 configuration
• Accessories include right-side pressure switch (30–110 mbar) with test point, left-side screw plugs
