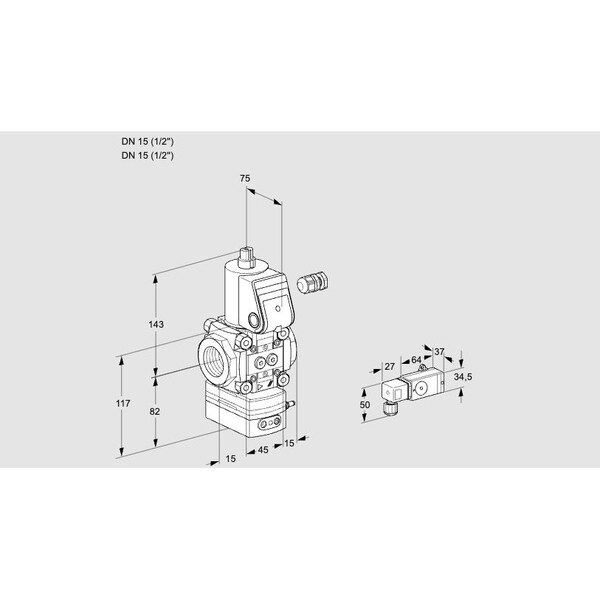

Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD115R/NW-100B is a pressure regulator intended for use in controlling and monitoring gas pressure in industrial systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it suitable for use with gas, air, and biologically produced methane. The device operates at a maximum inlet pressure of 500 mbar (7 psig) and features an outlet connection of DN 15 (1/2") Rp internal thread.

Key features include:

• Integrated pilot lamp for status indication
• IP65 rated enclosure
• FM and SA approved; EU certified
• Features rapid actuation mechanism
• Mains voltage: 24 V DC; electrical connection via M20 cable gland on the right side of the connection box
• Outlet pressure range: 35–100 mbar; reduced valve seat design
• Pressure switch accessory available with test point for outlet pressure (30–110 mbar)
• Includes two screw plugs as left-side accessories
• No inlet flange
