Gas Pressure Regulator with Solenoid Valve, 24V DC, DN15, 500 mbar Max

The HONEYWELL KROMSCHRODER VAD1-/25R/NW-50A is a pressure regulator intended for regulation and control of gas pressure in various systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features rapid actuation mechanism, an integrated pilot lamp, and is rated to IP65 ingress protection standards.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland
• FM and SA approved; EU certified

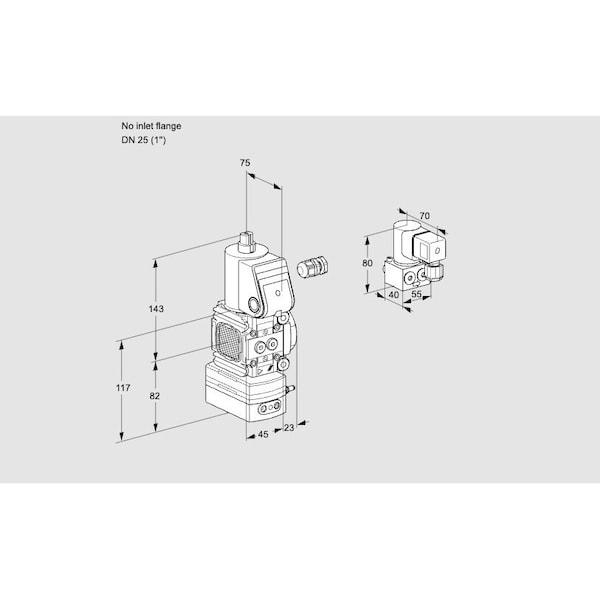

• No inlet flange; size 1 configuration
• Valve seat reduced design with optional right-side accessories including a pressure switch (30–110 mbar) and test point for outlet pressure
• Left-side accessories include two screw plugs
