Gas Pressure Regulator with Solenoid Valve, 24V DC, DN15, IP65

The HONEYWELL KROMSCHRODER VAD1-/20R/NW-100A is a pressure regulator intended for use in controlling and monitoring gas pressure within compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it suitable for use with gas, air, and biologically produced methane. The device features an outlet with DN 15 (1/2") Rp internal thread, operates at mains voltage of 24 V DC, and includes an IP65-rated enclosure.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation mechanism
• Integrated pilot lamp for status indication
• Electrical connection via M20 cable gland on the right side of the connection box
• Valve seat reduced; size 1 configuration
• Certified to applicable FM, SA, and EU standards

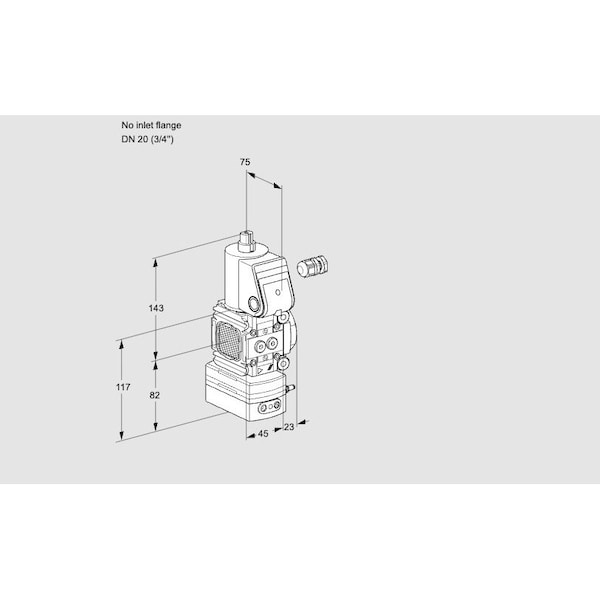

• No inlet flange; two screw plugs included as left-side accessories
• Right-side accessory: Pressure switch adjustable from 30–110 mbar with test point at outlet
