Gas Pressure Regulator with Solenoid Valve, 24V DC, DN15, IP65 Rated

The HONEYWELL KROMSCHRODER VAD1-/15R/NW-25B is a pressure regulator intended for use in the regulation and indication of gas pressure within industrial systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features rapid actuation mechanism, operates at a maximum inlet pressure of 500 mbar (7 psig), and rated for outlet pressures between 35–100 mbar.

Key features include:

• Integrated pilot lamp for operational status indication
• IP65 rated enclosure for ingress protection
• FM and SA approvals; EU certified

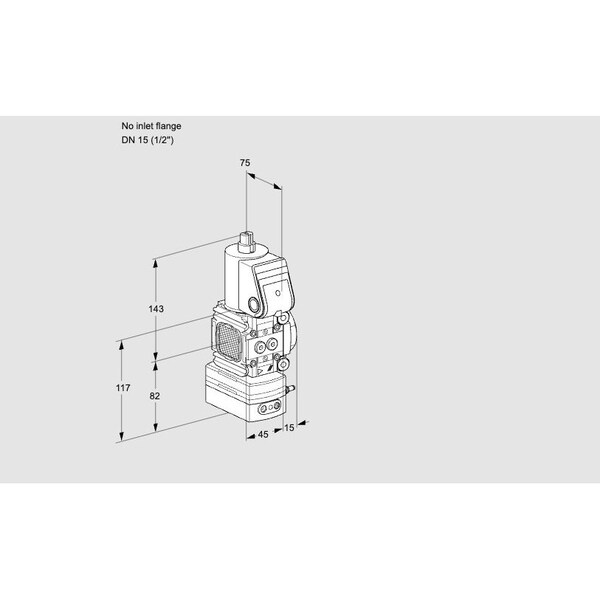

• Outlet connection: DN 15 (1/2") Rp internal thread; no inlet flange
• Mains voltage: 24 V DC; electrical connection via M20 cable gland on right side of the connection box
• Valve seat reduced design with optional right-side accessory: pressure switch (30–110 mbar)
• Test point available on right-hand side for outlet pressure measurement; left side includes two screw plugs
