Gas Pressure Regulator with Solenoid Valve, 24V DC, DN15, IP65 Rated

The HONEYWELL KROMSCHRODER VAD1-/25R/NQ-100A is a pressure regulator intended for regulation and control of gas pressure in compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it suitable for use with gas, air, and biologically produced methane. It features an outlet with DN 15 (1/2'') Rp internal thread, operates at mains voltage of 24 V DC, and includes a pilot lamp for operational status indication.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation
• Electrical connection via M20 cable gland; attached to right side of connection box
• IP65 rated enclosure
• FM and SA approved; EU certified

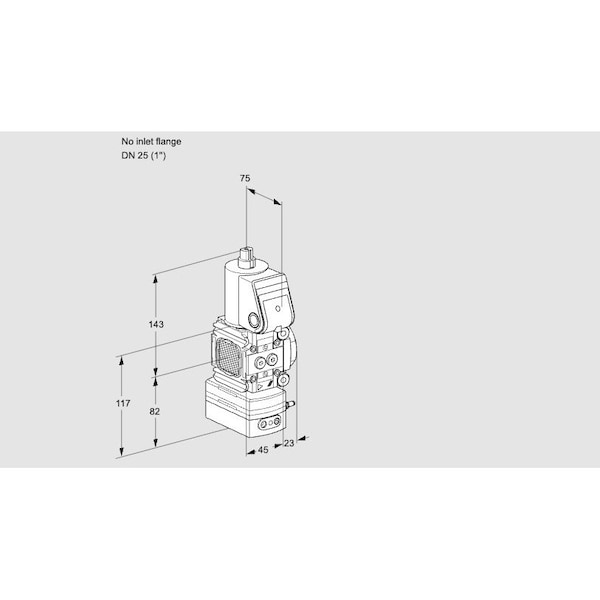

• No inlet flange; size 1 configuration
• Valve seat reduced type with accessories including right-side pressure switch (30–110 mbar) and left-side screw plugs
