Gas Pressure Regulator with Solenoid Valve, 24V DC, DN15, IP65 Rated

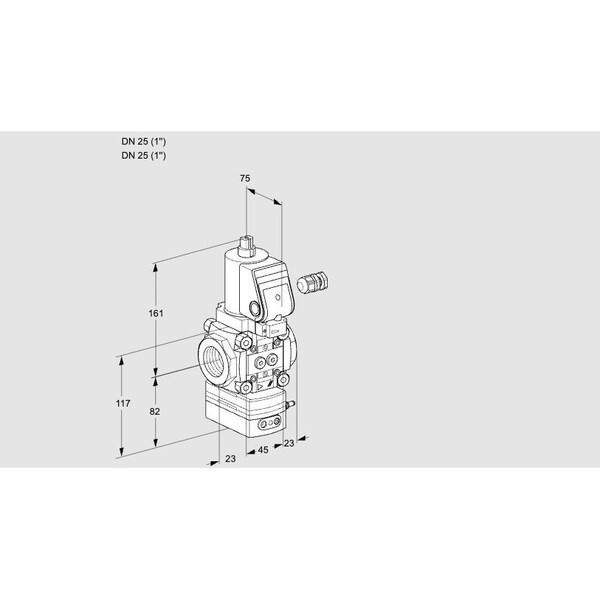

The HONEYWELL KROMSCHRODER VAD125R/NWGR-100A is a pressure regulator intended for use in the control and regulation of gas pressure in industrial systems. It incorporates both a Class A pressure regulator to EN 88 standards and a Class A solenoid valve to EN 161, compatible with gas, air, and biologically produced methane as specified by manufacturer guidelines. The unit operates at a maximum inlet pressure of 500 mbar (7 psig) and features an outlet pressure range from 35 to 100 mbar.

Key features include:

• Integrated pilot lamp for operational status indication
• IP65 rated enclosure for protection against dust and water ingress
• FM and SA approved; EU certified
• Features an actuator mechanism capable of rapid cycling within product specifications
• Outlet connection: DN 15 (1/2'') Rp internal thread; no inlet flange
• Mains voltage: 24 V DC with M20 cable gland electrical connection on the right side of the connection box
• Valve seat reduced design; size 1 configuration
• Accessories include right-side pressure switch (30–110 mbar), test point for outlet pressure, left-side screw plugs
