Gas Pressure Regulator with Solenoid Valve, 500 mbar, DN 15, 24V DC

The HONEYWELL KROMSCHRODER VAD2-/40R/NW-100A is a pressure regulator intended for use in applications involving gas pressure regulation and monitoring. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane. It operates at a maximum inlet pressure of 500 mbar (7 psig) and features an outlet connection of DN 15 (1/2'') Rp internal thread. The device includes a pilot lamp for status indication and is housed in an IP65-rated enclosure.

Key features:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2'') Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical supply: 24 V DC; M20 cable gland electrical connection
• Features rapid actuation mechanism
• Integrated pilot lamp
• FM and SA approved; EU certified

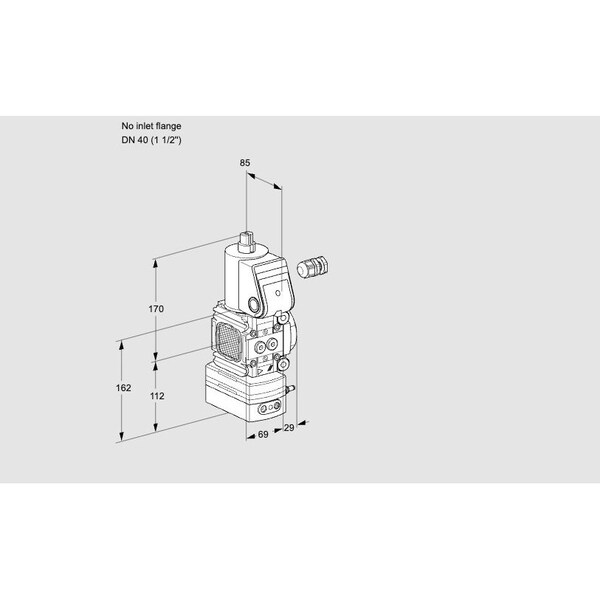

• No inlet flange included
• Valve seat reduced design; right-side accessories include a pressure switch (30–110 mbar) with test point, left side includes two screw plugs
