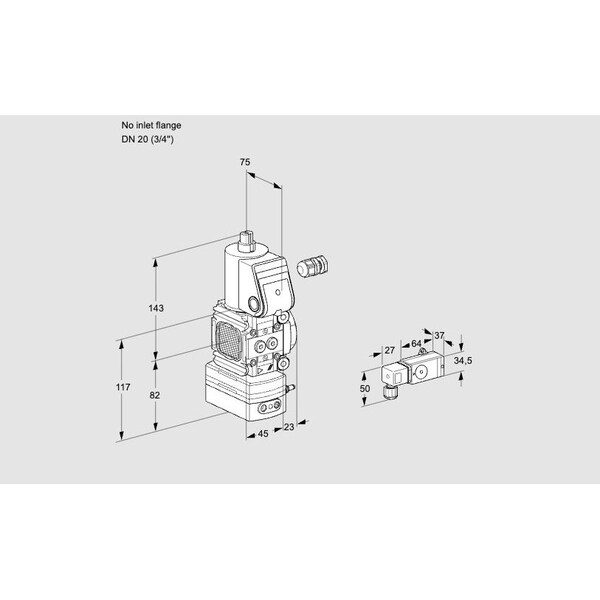

Gas Pressure Regulator with Solenoid Valve, 500 mbar, DN 15, IP65

The HONEYWELL KROMSCHRODER VAD1-/20R/NW-50A is a pressure regulator intended for regulation and control of gas pressure in industrial systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it compatible with gas, air, and biologically produced methane. It operates at a maximum inlet pressure of 500 mbar (7 psig) and features an outlet with DN 15 (1/2'') Rp internal thread. The device includes a pilot lamp for status indication and features rapid actuation capability.

Key features:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2'') Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland, mains voltage 24 V DC
• Protection rating: IP65
• Certifications: FM, SA approved; EU certified
• Valve seat reduced; no inlet flange included
• Accessories include right-side mounted pressure switch (30–110 mbar) with test point, left side has two screw plugs
