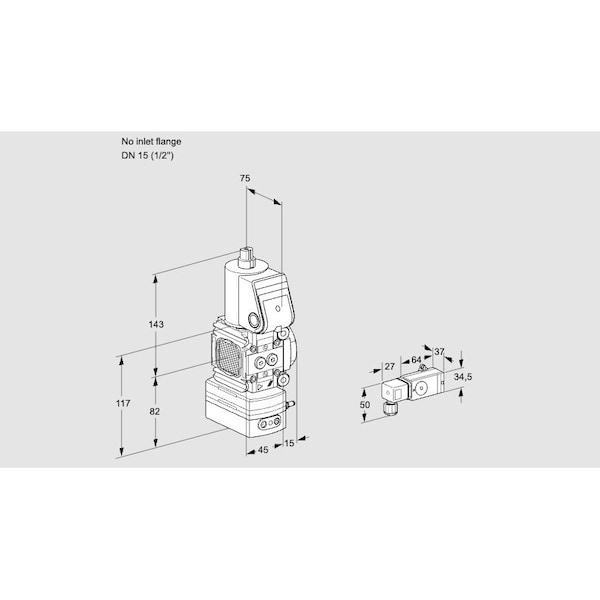

Gas Pressure Regulator with Solenoid Valve, DN 15, 500 mbar Max, IP65

The HONEYWELL KROMSCHRODER VAD1-/15R/NW-100B is a pressure regulator intended for regulation and control of gas pressure. It integrates both a Class A pressure regulator to EN 88 standards and a Class A solenoid valve to EN 161, suitable for use with gas, air, and biologically produced methane. The unit operates at a maximum inlet pressure of 500 mbar (7 psig) and features an outlet with DN 15 (1/2'') Rp internal thread. The device includes a pilot lamp indicator and features rapid actuation mechanism.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2'') Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland; mains voltage 24 V DC
• Protection rating: IP65
• Certifications: FM, SA approved; EU certified
• Features rapid actuation mechanism
• Accessories include right-side mountable pressure switch (30–110 mbar), test point for outlet pressure, left-side screw plugs
• No inlet flange included
