Gas Pressure Regulator with Solenoid Valve, DN15, 24V DC, 35–100 mbar

The HONEYWELL KROMSCHRODER VAD1-/15R/NW-100B is a pressure regulator intended for use in applications requiring regulation and monitoring of gas pressure within specified parameters. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane as per specifications. It features an outlet with DN 15 (1/2'') Rp internal thread connection, operates at mains voltage of 24 V DC, includes an IP65-rated enclosure.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation mechanism
• Pilot lamp indicator
• FM and SA approvals; EU certified
• Electrical connection via M20 cable gland on the right side of the connection box
• Valve seat: reduced design
• Accessories include right-side pressure switch (30–110 mbar) with test point for outlet pressure; left side has two screw plugs

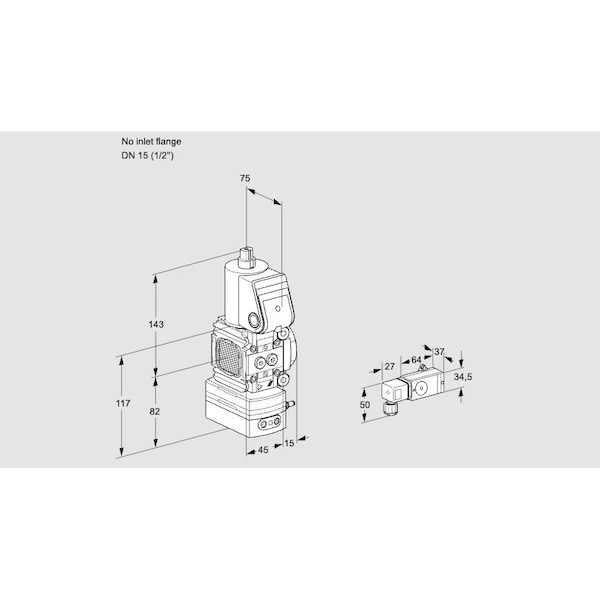

• No inlet flange
