Gas Pressure Regulator with Solenoid Valve, DN15, 24V DC, IP65 Rated

The HONEYWELL KROMSCHRODER VAD1-/15R/NW-50B is a pressure regulator intended for regulation and control of gas pressure within compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features an outlet with DN 15 (1/2'') Rp internal thread, operates at a maximum inlet pressure of 500 mbar (7 psig), and provides an outlet pressure range between 35–100 mbar.

Key features include:

• Integrated pilot lamp for operational status indication
• IP65 rated enclosure for ingress protection
• FM and SA approvals; EU certified
• Rapid actuation mechanism
• Mains voltage: 24 V DC; electrical connection via M20 cable gland on right side of connection box

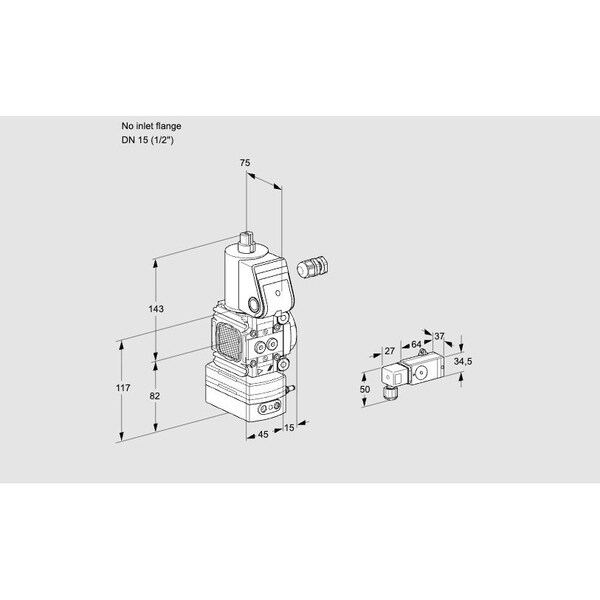

• No inlet flange; reduced valve seat design
• Outlet equipped with test point for right-hand pressure switch (30–110 mbar); left side includes two screw plugs
