Gas Pressure Regulator with Solenoid Valve, DN15, 24V DC, IP65 Rated
Mfr # KS88020176
Zoro # G115400921
Specifications
Product Information
Description

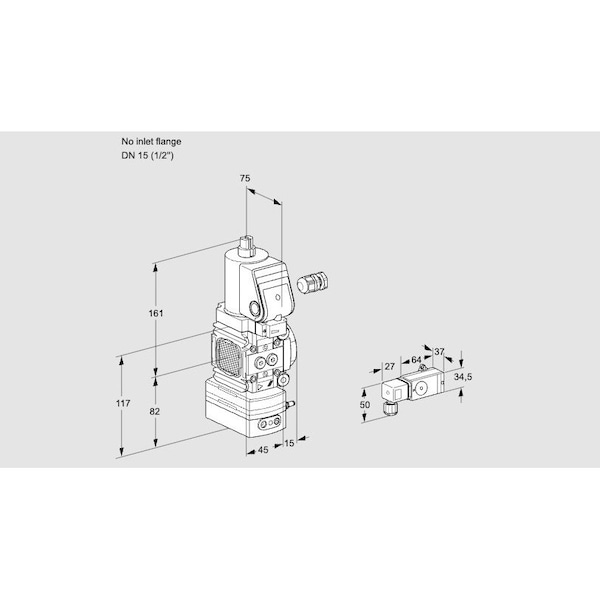

The HONEYWELL KROMSCHRODER VAD1-/15R/NWSR-100B is a pressure regulator intended for regulation and monitoring of gas pressure in compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), rated for operation with gas, air, and biologically produced methane as specified by manufacturer guidelines. The device features an outlet connection of DN 15 (1/2") Rp internal thread, operates at a maximum inlet pressure of 500 mbar (7 psig), and offers an outlet pressure range from 35 to 100 mbar.
Key features include:
- Integrated pilot lamp for status indication
- IP65 rated enclosure
- FM and SA approvals; EU certified
- Features rapid actuation mechanism
- Mains voltage: 24 V DC; electrical connection via M20 cable gland on the right side of the connection box
- No inlet flange; reduced valve seat design
- Outlet equipped with test point for right-hand pressure switch (30–110 mbar)
- Accessories include two screw plugs on the left side
