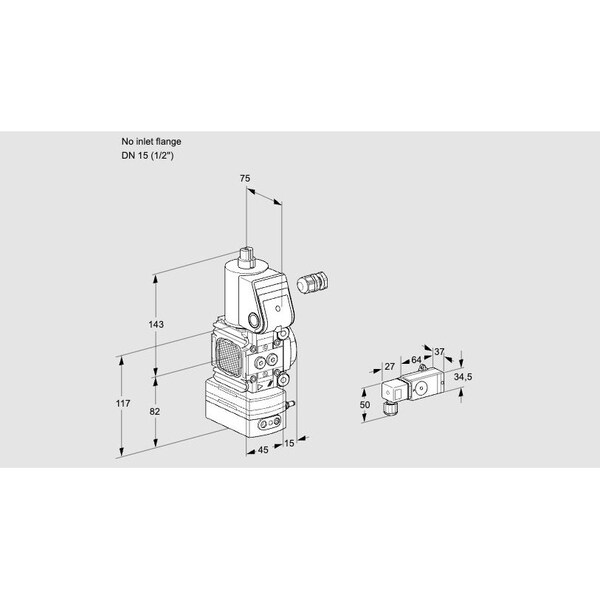

Gas Pressure Regulator with Solenoid Valve, DN15, 24V DC, IP65 Rated

The HONEYWELL KROMSCHRODER VAD1-/15R/NW-100B is a pressure regulator intended for use in the control and regulation of gas pressure in industrial systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it compatible with gas, air, and biologically produced methane. It features an outlet with DN 15 (1/2'') Rp internal thread connection, operates at mains voltage of 24 V DC, and includes a pilot lamp for operational status indication.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation
• Electrical connection via M20 cable gland on the right side of the connection box
• IP65 rated enclosure
• FM and SA approved; EU certified
• No inlet flange; reduced valve seat design
• Accessories include right-side pressure switch (30–110 mbar) with test point for outlet pressure, left-side screw plugs
