Gas Pressure Regulator with Solenoid Valve, DN15, 24V DC, IP65 Rated

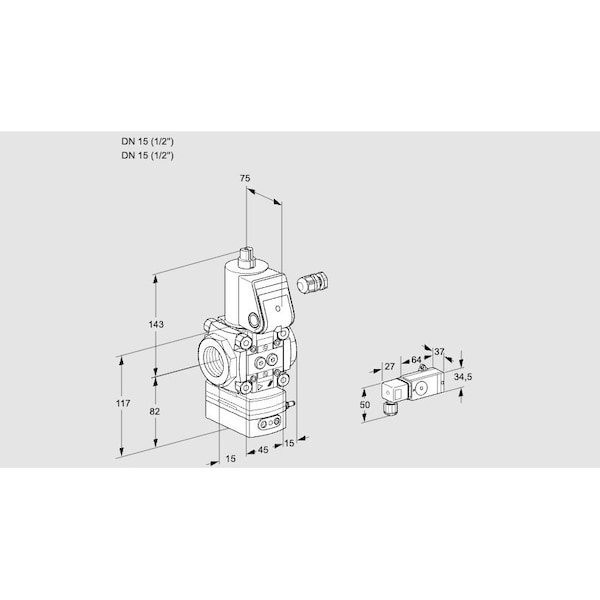

The HONEYWELL KROMSCHRODER VAD115R/NW-100B is a pressure regulator intended for regulation and control of gas pressure in compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features an outlet connection of DN 15 (1/2" Rp internal thread) without an inlet flange, supports rapid actuation mechanism, and includes a pilot lamp for status indication.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Electrical specifications: Mains voltage 24 V DC; electrical connection via M20 cable gland on the right side of the connection box
• Protection rating: IP65
• Approvals: FM and SA approved; EU certified
• Size designation: Size 1
• Accessories include a right-side pressure switch (30–110 mbar) with test point at outlet pressure, left-side two screw plugs
• Valve seat reduced type
