Gas Pressure Regulator with Solenoid Valve, DN15, 24V DC, IP65 Rated

The HONEYWELL KROMSCHRODER VAD1T-/15N/NQSR-100B is a pressure regulator intended for use in controlling gas pressure within specified system parameters. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it suitable for use with gas, air, and biologically produced methane as per manufacturer specifications. It features an outlet connection of DN 15 (1/2'') Rp internal thread, operates at mains voltage of 24 V DC, and includes electrical connections via M20 cable gland.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation mechanism
• Integrated pilot lamp for status indication
• IP65 rated enclosure
• FM and SA approved; EU certified

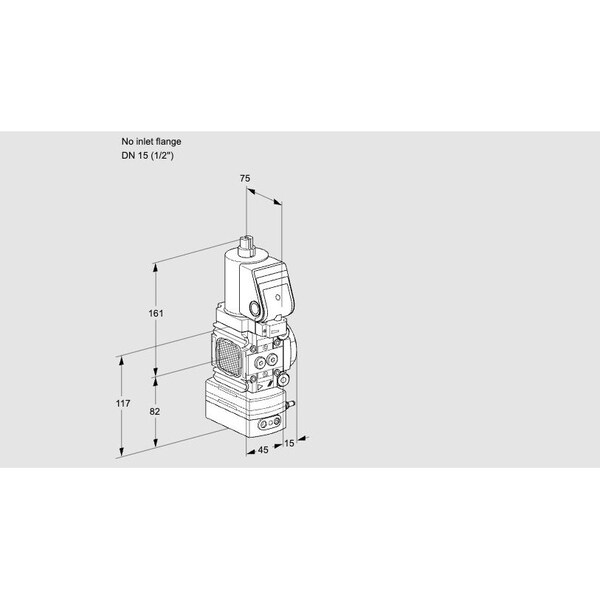

• No inlet flange; size 1 configuration
• Valve seat reduced design with right-side accessories including a pressure switch (30–110 mbar) and test point for outlet pressure; left side includes two screw plugs
