Gas Pressure Regulator with Solenoid Valve, DN15, 35–100 mbar, 24V DC

The HONEYWELL KROMSCHRODER VAD1-/15R/NQ-100B is a pressure regulator intended for regulation and control of gas pressure in industrial systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features rapid actuation, an integrated pilot lamp, and is rated to IP65 for ingress protection.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland
• FM and SA approved; EU certified

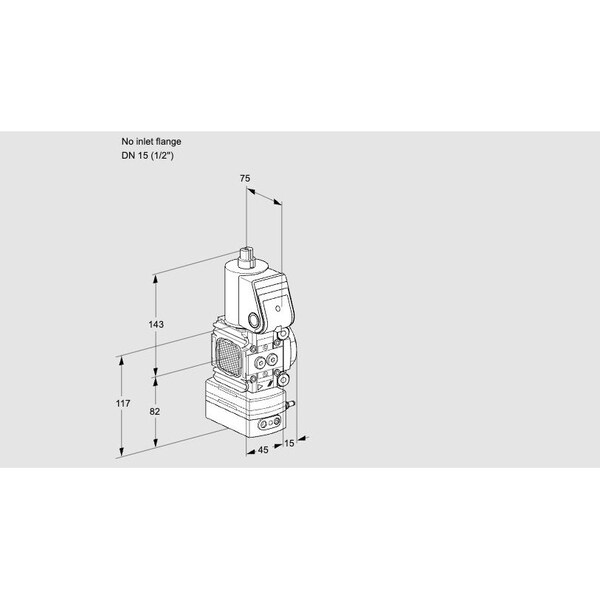

• No inlet flange; size 1 configuration
• Accessories include right-side pressure switch (30–110 mbar) with test point at outlet, left side fitted with two screw plugs
