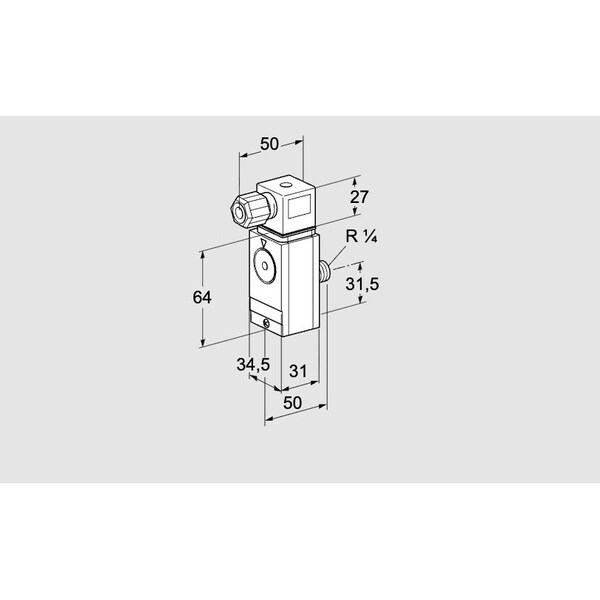

Gas Pressure Switch, 3–500 mbar, DG Series, Silicone-Free

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 150VC8 6W is a diaphragm gas pressure switch rated for monitoring positive pressures within the specified pressure range in compatible systems. It features a micro switch mechanism that operates without silicone components and provides switching point adjustment capability via setting dial or factory configuration. This product is classified under pressure switches and is intended for use in monitoring gas pressures within compatible systems according to product specifications.

Key features include:

• Pressure range: 3 to 500 mbar (1.2 to 144"WC)
• Pneumatic connections: Internal (1x or 2x Rp 1/4), External (Rp 1/8 or Rp 1/4)
• Contact options: Silver contacts (24–250V AC, 0.05–5A) and gold contacts (5–250V AC, 0.01–5A) for CE version; gold contacts (max 30V AC, 0.05A) and silver contacts (30–240V AC, up to 5A) for UL versions
• Electrical connection: Four-pin plug and socket
• Certified by EU, UL listed, FM approved, AGA approved; RoHS compliant
• Silicone-free construction
