Gas Pressure Switch – Adjustable, 3–500 mbar, DG Series

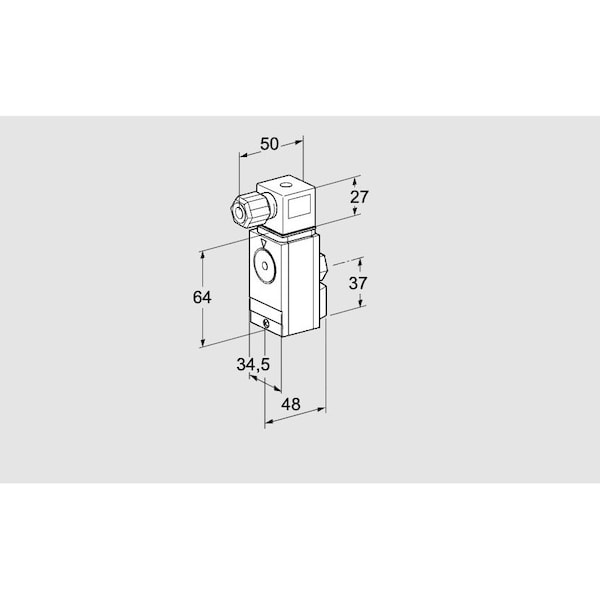

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 300VC5 6WG is a diaphragm gas pressure switch rated for use with positive pressures of gas, biogas, air, and flue gases within the specified pressure range. It features a micro switch mechanism that is constructed without silicone components and provides adjustable switching point by setting dial or is available as a factory set option. This unit is classified as a Gas Pressure Switch.

Key features include:

• Certified to EU, UL, FM, AGA standards; EAC and RoHS listed
• Adjustable switching point by setting dial or available as factory set
• Suitable for use with positive pressure of gas, biogas, air, and flue gases
• Pressure range: 3 to 500 mbar (1.2 to 144"WC)
• Pneumatic connections: Internal Rp 1/4 (single or dual), external Rp 1/8 or Rp 1/4
• Contact ratings: Silver contacts (24–250V AC, 0.05–5A), Gold contacts (5–250V AC, 0.01–5A); UL versions offer additional configurations up to max 240V AC at 5A
• Electrical connection via four-pin plug and socket
• Constructed without silicone components
