Gas Pressure Switch, Adjustable, DG Series, Air/Gas/Flue

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 10U 3N is a gas pressure switch rated for use in applications involving positive gas and air pressures, as well as negative and differential air pressures. This device includes an adjustable switching point controlled by a setting dial and operates with media such as gas, air, and flue gases. The DG series includes both European (DG) and US (DG..T) versions to accommodate different regional standards.

Key features include:

• Includes an adjustable switching point controlled by a setting dial
• Compatible with specified media (gas, air, flue gases) within the product’s rated operating parameters
• Available in European (DG) version with EU certification or US (DG..T) version with UL/FM approvals

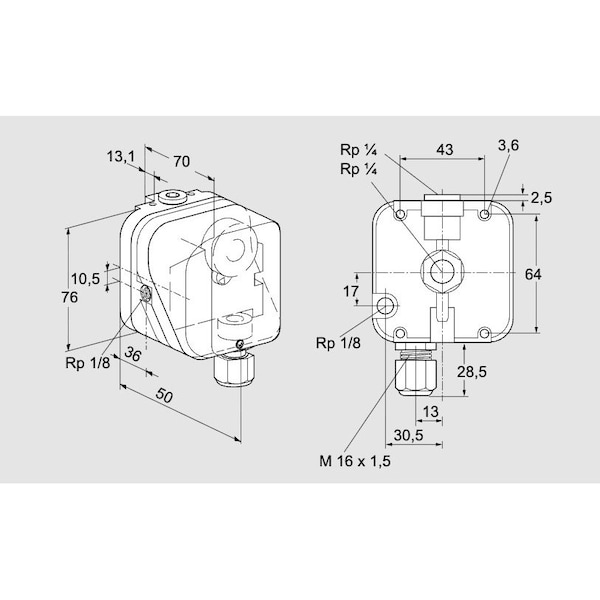

• Multiple pneumatic connection options: Rp 1/8" or Rp 1/4" internal threads on the DG model; NPT connections on the DG..T model
• Electrical contacts are available in silver or gold variants; refer to specifications for supported voltage ranges
• Electrical connection options include screw terminals, cable glands/conduits, or plug-and-socket interfaces
