Gas Pressure Switch - Adjustable, DG Series, UL/FM or EU Cert

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 150U 9T is a gas pressure switch rated for use with positive gas and air pressures, as well as negative and differential air pressures. This device includes an adjustable switching point controlled by a setting dial and operates with media such as gas, air, and flue gases. The DG series includes both European (DG) and US (DG..T) versions to accommodate different regional standards.

Key features include:

• Includes an adjustable switching point controlled by a setting dial
• Compatible with specified media (gas, air, flue gases) within the stated operating parameters for positive or negative/differential pressure applications
• Available in European (DG) version with EU certification or US (DG..T) version with UL/FM approvals

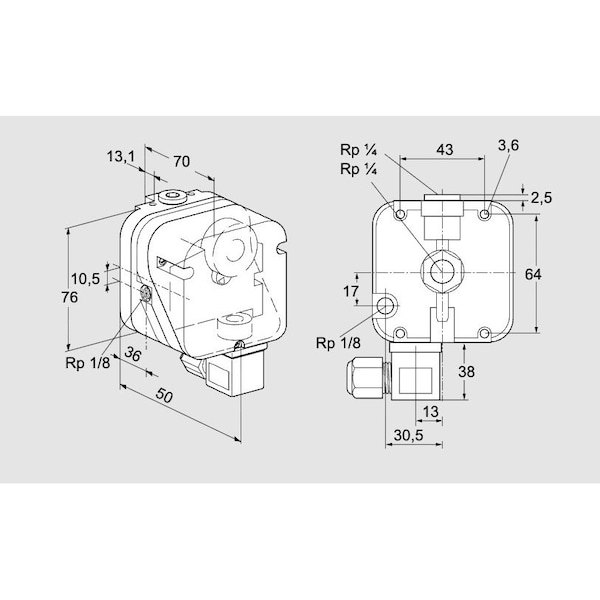

• Multiple pneumatic connection options: Internal Rp 1/8" or Rp 1/4" for DG; NPT threads for DG..T
• Electrical connections available via screw terminals or plug/socket configurations
• Contact types include silver contacts (up to 250V AC/5A) or gold contacts (up to 250V AC/5A)
• Optional locking/manual reset feature on the US version
