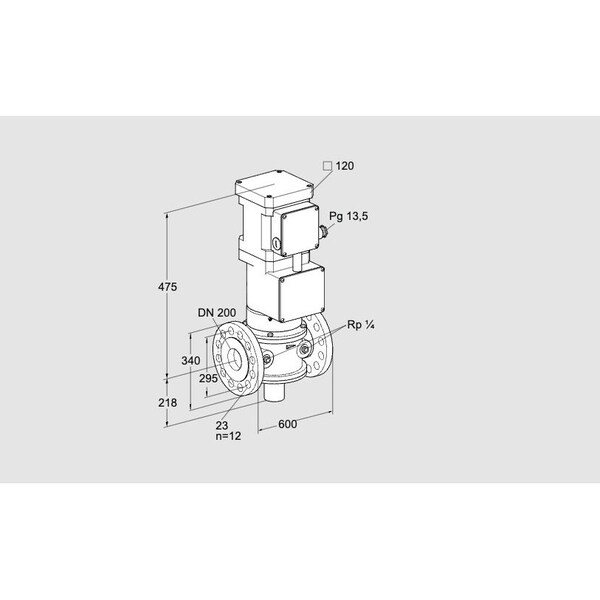

Gas Safety Shut-Off Valve, Motorized, Class A, DN 200, 8 bar

The HONEYWELL KROMSCHRODER VK 200F02T5A93S2 is a Class A gas safety valve intended for use as a shut-off valve in gas and air systems. This electrically operated valve remains closed when de-energized, features slow opening and quick closing functions, and meets EN 161 standards. It is EU certified and suitable for use with various connection types and pressure ranges.

Key features include:

• Two-step operation available (VK..Z)
• GGG 40 housing option for specific system requirements (VK..G)
• Variants are available rated for operation at higher pressure ranges (VK..H)
• Versions are available that comply with applicable standards for use in designated hazardous zones (zone 1 & 2), per manufacturer specifications
• Nominal diameter range: DN 40 to DN 250
• Connection options: threaded or flanged
• Pressure range: max. 230 mbar to max. 8 bar
• Mains voltage compatibility: 100 V AC to 220/240 V AC
• Housing materials: AlSi or GGG 40; electrical connections via terminals or standard plug/socket
• Available variants include flow adjustment, position indicator, holding relay for manual restart, and Viton valve disc seal
