Supco

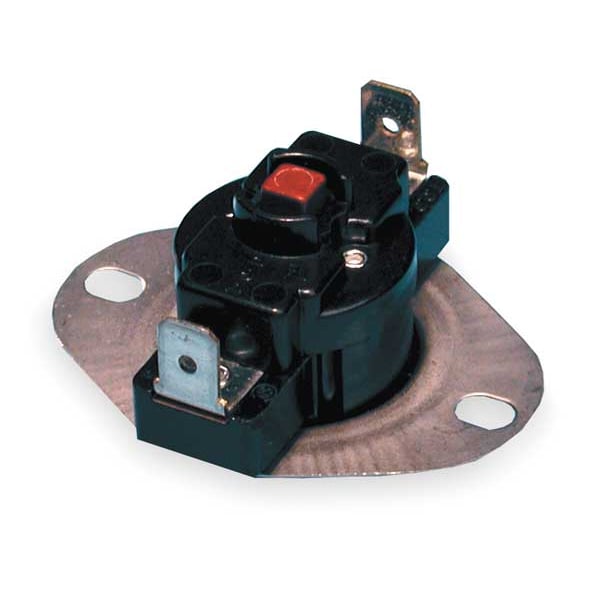

Thermostat, Adjustable Limit, 120/240V

product price: $12.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range (F) 180
  • Type Limit, Rollout, Manual Reset
  • Switch Type SPST
  • Depth (In.) 3 3/4 in
  • Width (In.) 2 3/4 in
See all product information

Product Information

Dimensions

Depth (In.) 3 3/4 in
Width (In.) 2 3/4 in
Height (In.) 2 3/8 in
Mounting Base Length 2 in
Mounting Base Width 1 5/8 in
Overall Depth 3 3/4 in
Overall Height 2 in

Details

Item Temperature Limit Controller
Temp. Range (F) 180
Type Limit, Rollout, Manual Reset
Switch Type SPST
Switch Opens @ (F) 180 Degrees F
Voltage Range 120 to 240
Resistive Amps @ 120V 25 A
Resistive Rating 240V 25
Circuit #1 Switch Opens @ (F) 180 Degrees F
Inductive Amps @ 240V 10 A
Inductive Amps @ 120V 14 A
Switch Action Open on Rise
Circuit #1 Switch Closes @ (F) Manual
Application Limit Control
Resistive Amps @ 240V AC 25 A
Contact Form SPST
Standards CSA Certified, UL Listed
Pilot Contact Rating 125 VA
Input Voltage 240V AC
Maximum Control Temperature 180 Degrees F
Series SHM
Mounting Surface Mount
Resistive Amps @ 120V AC 25 A
Reset Type Manual Reset
Switch Opening Temperature 180 Degrees F
Contact Rating (AC) 10 A @ 120V AC, 30 A @ 240V AC, 5 A @ 240V AC, 60 A @ 120V AC
Product Type Temperature Limit Controller

Description

Temperature Limit Controller, Application Limit Control, Mounting Surface Mount, Contact Form SPST, Switch Action Open on Rise, Reset Type Manual Reset, Switch Closing Temperature Not Applicable, Switch Opening Temperature 180 Degrees F, Input Voltage 240V AC, Maximum Control Temperature 180 Degrees F, Mounting Base Length 2 in, Mounting Base Width 1 5/8 in, Product Type Temperature Limit Controller, Overall Depth 3 3/4 in, Overall Height 2 in
