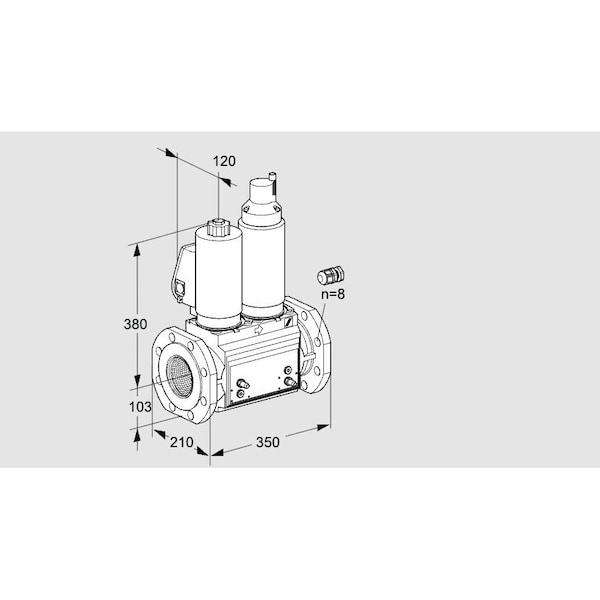

Gas Solenoid Valve – 500 mbar, IP65, EN 161, Class A
Mfr # KS88203699
Zoro # G715425577
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VCS8100F05NLWGL3B/MPPM/PPPP is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air, per manufacturer specifications. It operates in accordance with EN 161 standards, remaining closed when de-energized. This valve supports a maximum operating pressure of 500 mbar and features both pilot lamp indication and flow adjustment capabilities. The unit is rated IP65 for ingress protection and holds EU certification as well as FM and CSA approvals, making it suitable for use in systems up to SIL 3 and PL e.
Key features include:
- Size range: 1 to 9; nominal diameter (DN): 10 to 125
- Connection options: threaded or flanged
- Opening characteristics: quick opening/quick closing or slow opening/quick closing
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or integrated pressure switches
