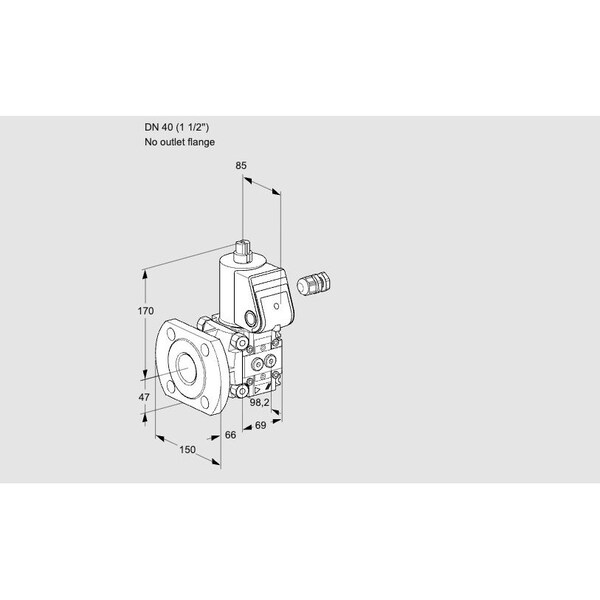

Gas Solenoid Valve - 500 mbar, IP65, EN 161, SIL 3 Rated

The HONEYWELL KROMSCHRODER VAS240/-F/NW is a Class A solenoid valve intended for use in automatic shut-off applications for gas and air, conforming to EN 161 standards. The valve is configured to be in a closed position when not energized and features a pilot lamp and flow adjustment. It is assessed according to SIL 3 and PL e standards, with approvals from FM and CSA, as well as EU certification. The unit has an IP65 rating for ingress protection.

Key features include:

• Maximum operating pressure: 500 mbar
• Available sizes: 1 to 9 (DN 10 to DN 125)
• Connection types: threaded or flanged
• Operation options: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal
• Optional versions available with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
