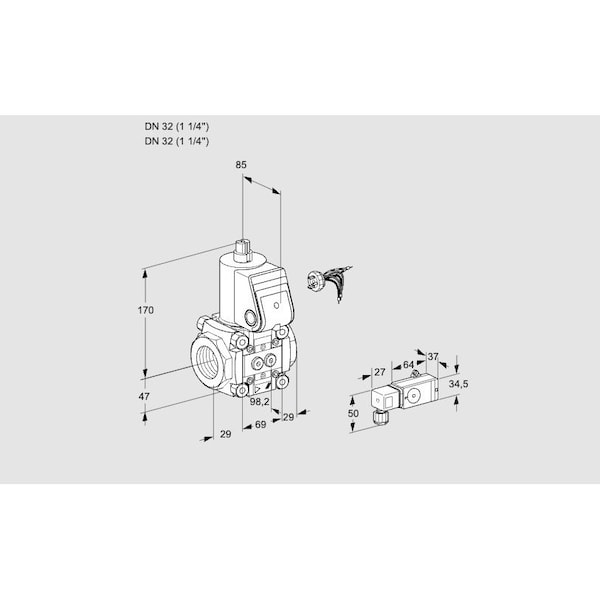

Gas Solenoid Valve - 500 mbar, IP65, EN 161, SIL 3 Rated

The HONEYWELL KROMSCHRODER VAS232R/NW is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air lines. This unit compliant with EN 161 standards, remains closed when not energized. It is rated for a maximum operating pressure of 500 mbar and equipped with pilot lamp and flow adjustment. The valve rated to IP65 ingress protection, holds EU, FM, and CSA certifications, and is certified for application in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing action: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator (visual), fitted bypass or pilot gas valves, and integrated pressure switches
