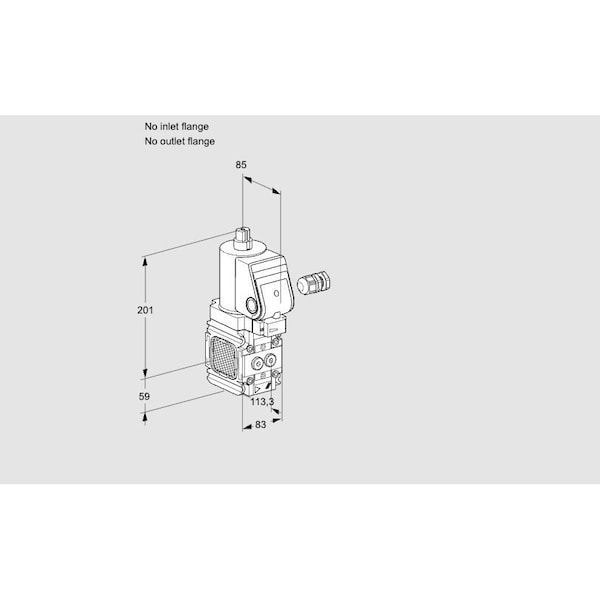

Gas Solenoid Valve – Auto Shut-Off, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS3 Solenoid Valve is a solenoid valve for use in gas and air systems. This solenoid valve is intended for automatic shut-off functionality. When de-energized, the solenoid valve is in a closed position and supports a maximum operating pressure of 500 mbar. It features quick opening operation, flow adjustment, and is equipped with a pilot lamp to indicate operational status. The unit meets EN 161 standards and holds EU certification as well as FM and CSA approvals.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• IP65 enclosure rating for ingress protection
• Available with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches (DG../VC)
• Certified according to SIL 3 and PL e standards
