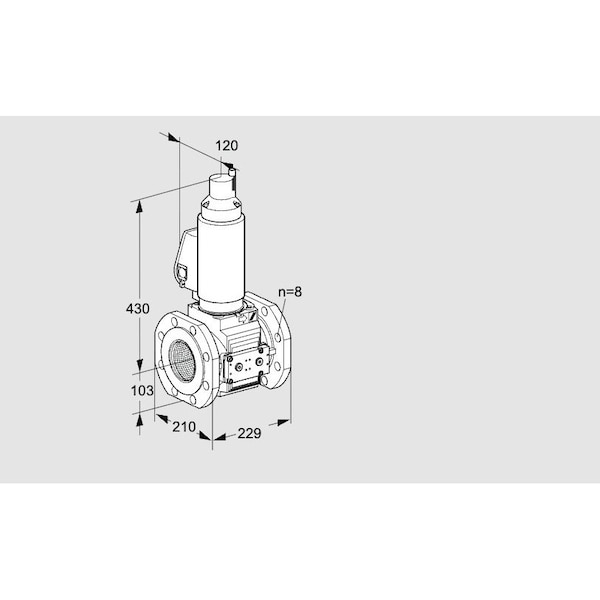

Gas Solenoid Valve - Class A, 500 mbar, EN 161, IP65, VAS Series

The HONEYWELL KROMSCHRODER VAS8T100A05LQSLE/PP/PP is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. This valve rated to meet EN 161 standards, remains closed when not energized. It supports a maximum operating pressure of 500 mbar and includes pilot lamp indication and flow adjustment. The unit is rated IP65 for ingress protection and has obtained EU, FM, CSA certifications; suitable for installation in systems up to SIL 3/PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or integrated pressure switches
