Gas Solenoid Valve – Class A, 500 mbar, EN 161, VCS Series

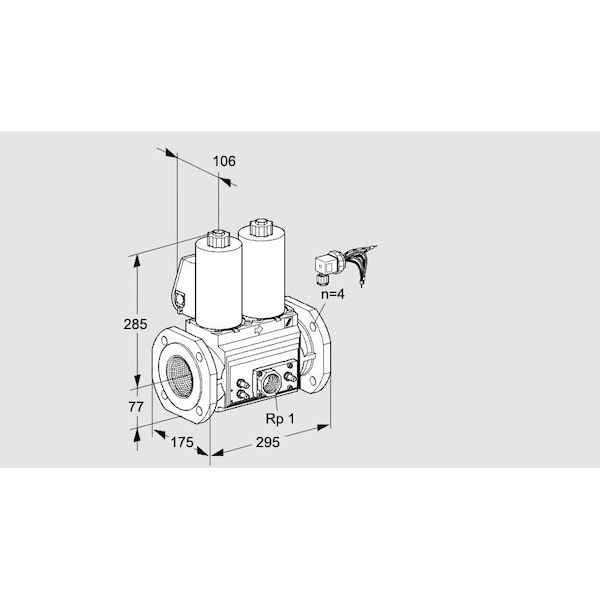

The HONEYWELL KROMSCHRODER VCS665F05NNKLE/MMEM/PPMM is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. It complies with EN 161 standards, remains closed when not energized, and supports a maximum operating pressure of 500 mbar. The unit includes pilot lamp and flow adjustment mechanism. It has obtained EU certification, FM approval, CSA approval; suitable for integration into systems requiring up to SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches DG../VC
