Gas Solenoid Valve – Class A, 500 mbar, IP65, EN 161 Certified

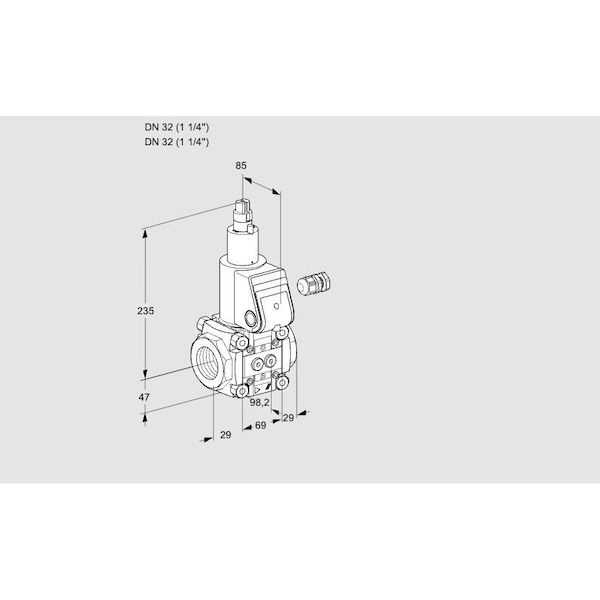

The HONEYWELL KROMSCHRODER VAS2T32N/LQ is a Class A solenoid valve intended for use in applications requiring the control of gas and air flow. This valve remains closed when de-energized and is rated for operation up to a maximum pressure of 500 mbar. It includes pilot lamp, adjustable flow settings, and is rated IP65 for ingress protection. The unit complies with EN 161 standards and is certified by EU, FM, and CSA. It is suitable for installation in systems requiring compliance with SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available configurations include position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
