Gas Solenoid Valve – Class A, 500 mbar, IP65, EN 161 Certified

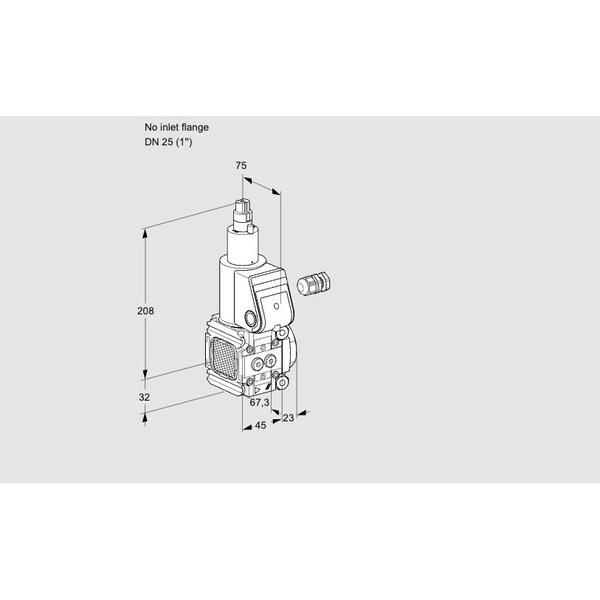

The HONEYWELL KROMSCHRODER VAS1-/25R/LW is a Class A solenoid valve intended for use in the automatic shut-off of gas and air lines. This valve remains closed when de-energized and meets EN 161 standards, with a maximum operating pressure of 500 mbar. It includes an integrated pilot lamp and adjustable flow mechanism, providing visual status indication and control over media flow. The unit is rated IP65 for ingress protection and holds EU certification as well as FM and CSA approvals.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches (DG../VC)
• Certified for use in systems up to SIL 3 and PL e
