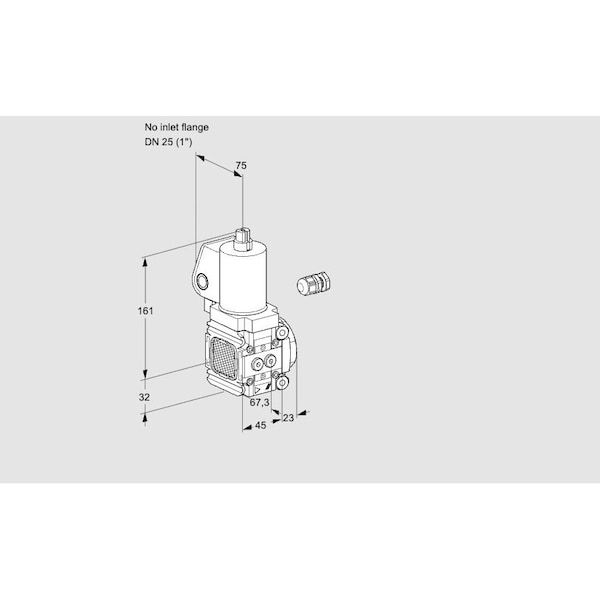

Gas Solenoid Valve - Class A, 500 mbar, IP65, EN 161 Certified
Mfr # KS88005776
Zoro # G815414235
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VAS1-/25R/NWSL is a Class A solenoid valve intended for use in applications requiring the shut-off of gas and air, as specified by EN 161 standards. The valve is configured to be in a closed position when not energized, according to manufacturer specifications, and features both a pilot lamp and flow adjustment capability. It is certified for use in systems up to SIL 3 and PL e, with approvals from FM and CSA, as well as EU certification. The unit has an ingress protection rating of IP65 per IEC standard 60529.
Key features include:
- Maximum operating pressure: 500 mbar
- Available sizes: 1 to 9; nominal diameters (DN): 10 to 125
- Connection types: threaded or flanged
- Operation modes: quick opening/quick closing or slow opening/quick closing
- Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Optional versions available with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
Restrictions
