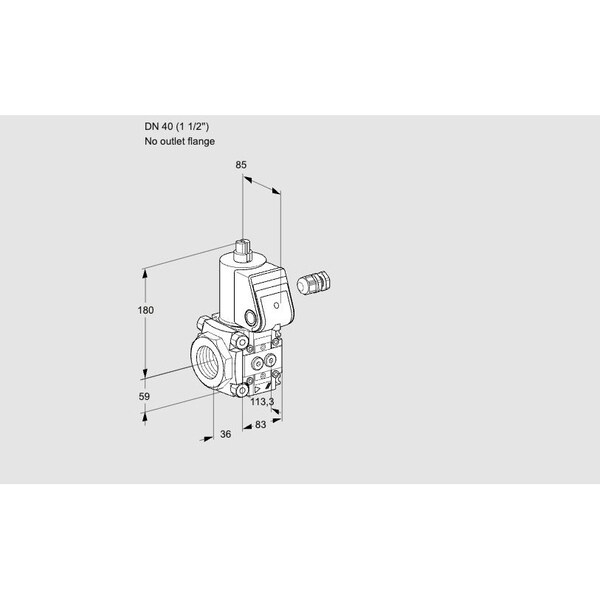

Gas Solenoid Valve – Class A, 500 mbar, IP65, EN 161 Certified

The HONEYWELL KROMSCHRODER VAS340/-R/NP is a Class A solenoid valve intended for use in automatic shut-off applications for gas and air, meeting EN 161 standards. The valve is configured to be closed when not energized and includes a pilot lamp and adjustable flow settings. It is rated for a maximum operating pressure of 500 mbar, has an IP65 enclosure rating, and holds EU certification as well as FM and CSA approvals. The product is certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening with quick closing or slow opening with quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal
• Available versions include models with position indicator, visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches DG../VC
