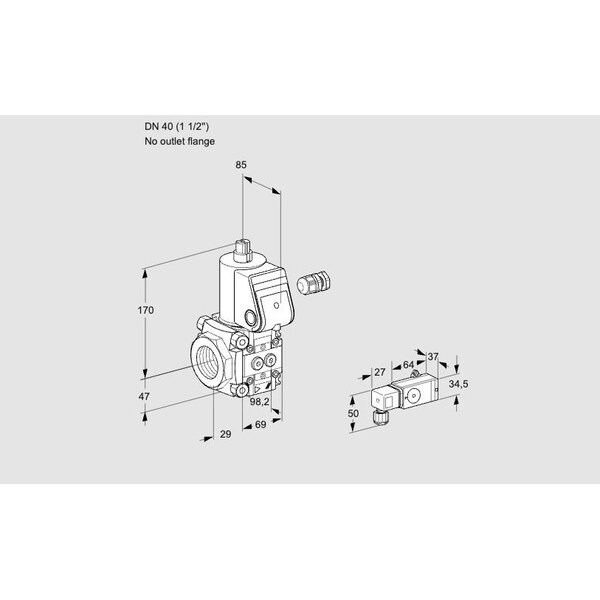

Gas Solenoid Valve – Class A, 500 mbar, IP65, EN 161 Certified

The HONEYWELL KROMSCHRODER VAS240/-R/NW is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air, meeting EN 161 standards. The valve is configured to be in a closed position when not energized and features a pilot lamp and flow adjustment capability. It is rated for operation at maximum operating pressures up to 500 mbar and carries certifications including EU, FM, CSA, SIL 3, and PL e. The unit has an IP65 rating for ingress protection.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator (visual), fitted bypass/pilot gas valve, or pressure switches DG../VC
