Gas Solenoid Valve - Class A, 500 mbar, IP65, EN 161 Certified

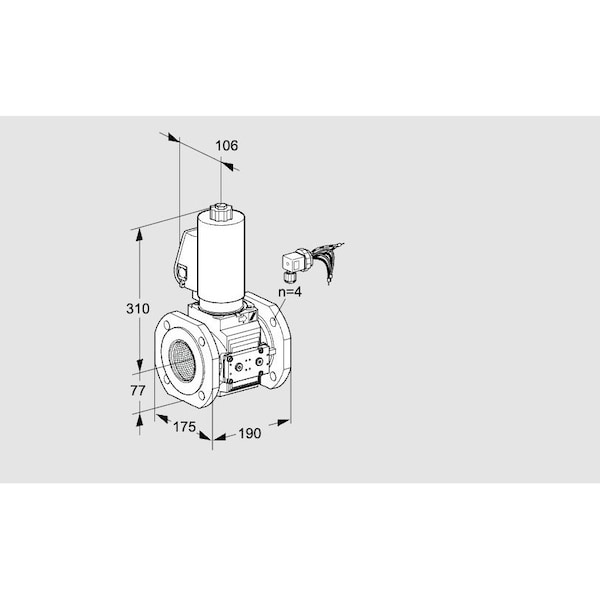

The HONEYWELL KROMSCHRODER VAS665F05NWGLE/PP/PP is a Class A solenoid valve intended for use in applications requiring the shut-off of gas and air. This valve conforms to EN 161 standards, is closed when not energized, and is rated for a maximum operating pressure of 500 mbar. It includes an integrated pilot lamp and adjustable flow setting, with an ingress protection rating of IP65. The unit holds EU certification as well as FM and CSA approvals, and is certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator (visual), fitted bypass/pilot gas valves, or fitted pressure switches DG../VC
