Gas Solenoid Valve – Class A, 500 mbar, IP65, EN 161 Certified
Mfr # KS88205333
Zoro # G415424382
Specifications
Product Information
Description

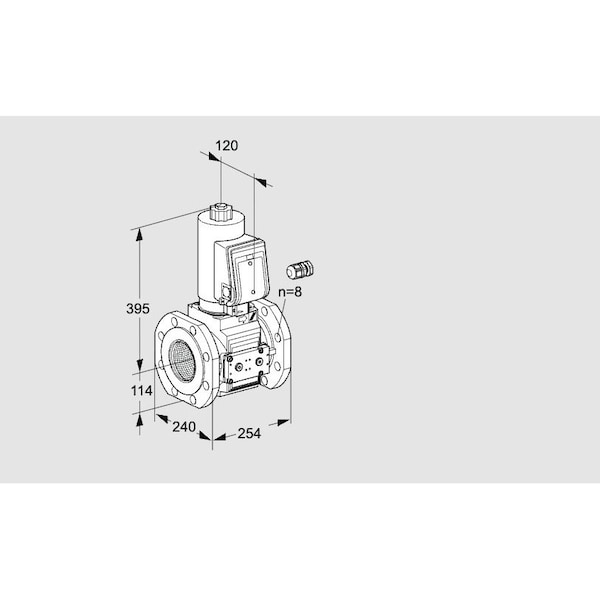

The HONEYWELL KROMSCHRODER VAS9125F05NASR3E/PP/PP is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. This valve compliant with EN 161 standards, remains closed when not energized, and supports a maximum operating pressure of 500 mbar. It includes pilot lamp and adjustable flow settings, is rated IP65 for ingress protection, and holds EU certification as well as FM and CSA approvals. The unit is certified for use in systems suitable for integration into systems requiring up to SIL 3 or PL e certification.
Key features include:
- Size range: 1 to 9; DN (nominal diameter): 10 to 125
- Connection options: threaded or flanged
- Operation types: quick opening/quick closing or slow opening/quick closing
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions include models with position indicator, visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches
