Gas Solenoid Valve - Class A, 500 mbar, IP65, EN 161

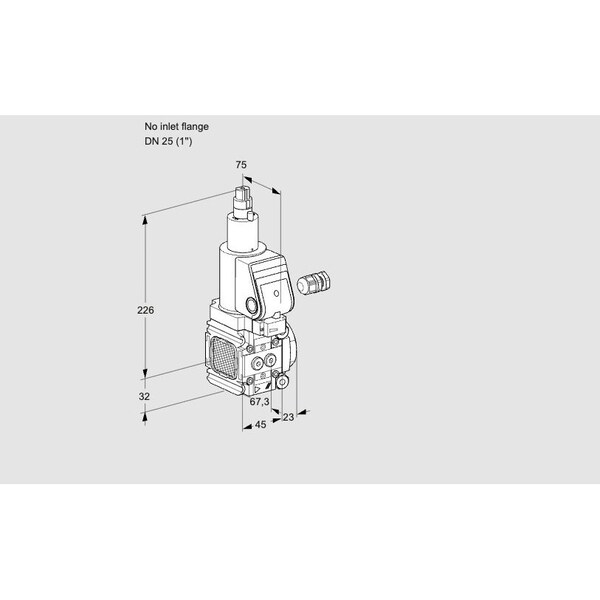

The HONEYWELL KROMSCHRODER VAS1-/25R/LPGR is a Class A solenoid valve intended for use in automatic shut-off applications for gas and air, conforming to EN 161 standards. The valve is configured to be closed when not energized and features a pilot lamp and flow adjustment. It is rated for operation at pressures up to 500 mbar, has an IP65 rating for ingress protection, and holds EU certification as well as FM and CSA approvals. The unit is certified for systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass or pilot gas valves, and integrated pressure switches DG../VC
