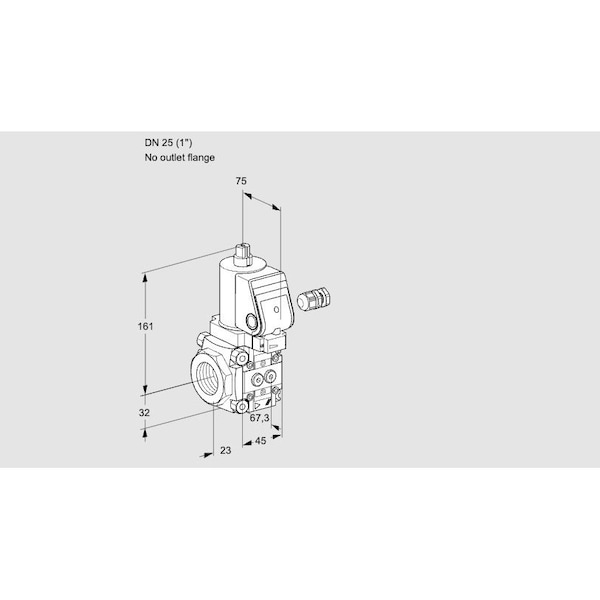

Gas Solenoid Valve - Class A, 500 mbar, IP65, EN 161

The HONEYWELL KROMSCHRODER VAS125/-R/NQGR is a Class A solenoid valve intended for use in applications requiring the shut-off of gas and air. It meets EN 161 standard requirements, is configured to be closed when not energized, and supports a maximum operating pressure of 500 mbar. The unit features pilot lamp and flow adjustment controls. It has an IP65 ingress protection rating, holds EU certification, FM approval, and CSA approval, and may be used in systems where SIL 3 or PL e compliance is required.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass/pilot gas valves, or integrated pressure switches
