Gas Solenoid Valve – Class A, 500 mbar, IP65, EN 161

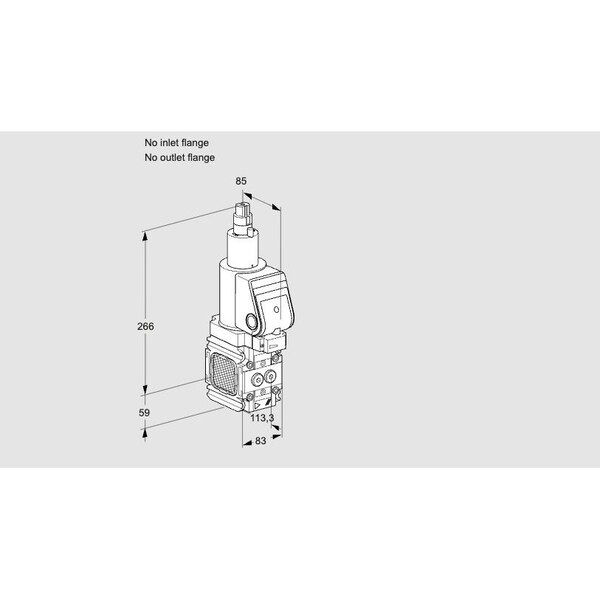

The HONEYWELL KROMSCHRODER VAS3T-/LKSR is a Class A solenoid valve intended for use in applications requiring the automatic shut-off of gas and air, conforming to EN 161 standards. When not energized, the valve is in a closed position and supports a maximum operating pressure of 500 mbar. It includes an integrated pilot lamp and flow adjustment; enclosure has an IP65 rating. This model holds EU certification as well as FM and CSA approvals, and is certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
