Gas Solenoid Valve - Class A, 500 mbar, IP65, EN 161
Mfr # KS88032201
Zoro # G315424338
Specifications
Product Information
Description

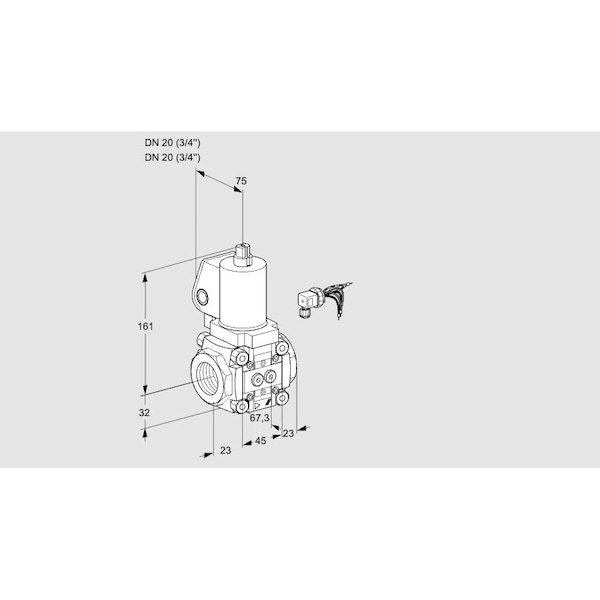

The HONEYWELL KROMSCHRODER VAS120R/NWSL is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. It complies with EN 161 standards, and the valve is normally closed (de-energized state). This valve is rated for a maximum operating pressure of 500 mbar and includes pilot lamp indication and flow adjustment options. The unit is rated to IP65 ingress protection standard, holds EU certification; FM and CSA approvals, and is suitable for installation in systems requiring up to SIL 3 or PL e.
Key features include:
- Size range: 1 to 9; DN (nominal diameter): 10 to 125
- Connection options: threaded or flanged
- Operation types: quick opening/quick closing or slow opening/quick closing
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or integrated pressure switches
