Gas Solenoid Valve - Class A, 500 mbar, IP65, EN 161
Mfr # KS88206871
Zoro # G915425667
Specifications
Product Information
Description

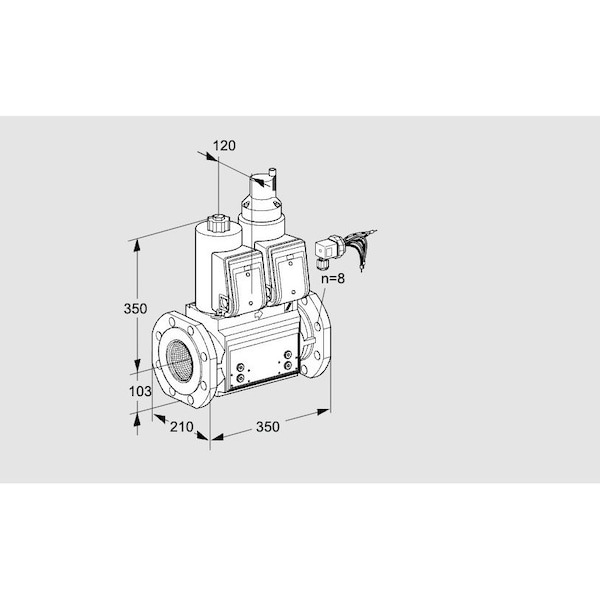

The HONEYWELL KROMSCHRODER VCS8100F05NLWRB/PPPP/MMMM is a Class A solenoid valve intended for use in applications requiring the control of gas and air flow. It operates in accordance with EN 161 standards and is configured to be in a closed position when not energized. This valve supports a maximum operating pressure of 500 mbar, features an integrated pilot lamp and flow adjustment, and has an ingress protection rating of IP65. The unit holds EU certification as well as FM and CSA approvals, with may be used in systems with requirements up to SIL 3 and PL e, subject to system compatibility.
Key features include:
- Size range: 1 to 9; nominal diameter (DN): 10 to 125
- Connection options: threaded or flanged
- Operation types: quick opening/quick closing or slow opening/quick closing
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
