Gas Solenoid Valve - Class A, 500 mbar, IP65, EN 161

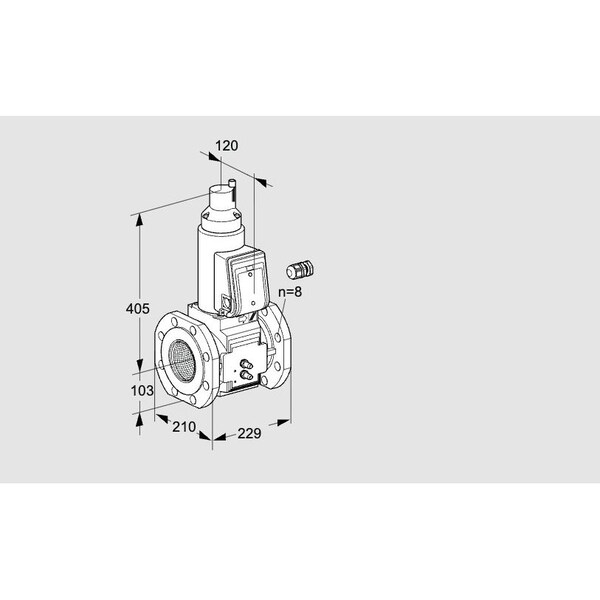

The HONEYWELL KROMSCHRODER VAS8100F05LW3B/MM/PP is a Class A solenoid valve intended for use in the automatic shut-off of gas and air systems. It is rated to meet EN 161 standards, with the valve being normally closed when not energized, and is rated for operation at pressures up to 500 mbar. The unit includes a pilot lamp and adjustable flow settings, with an IP65 enclosure rating. It is certified under applicable EU, FM, and CSA standards and meets requirements for applications classified as SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass/pilot gas valves, or integrated pressure switches
