Gas Solenoid Valve – Class A, EN 161, 500 mbar, IP65, Pilot Lamp

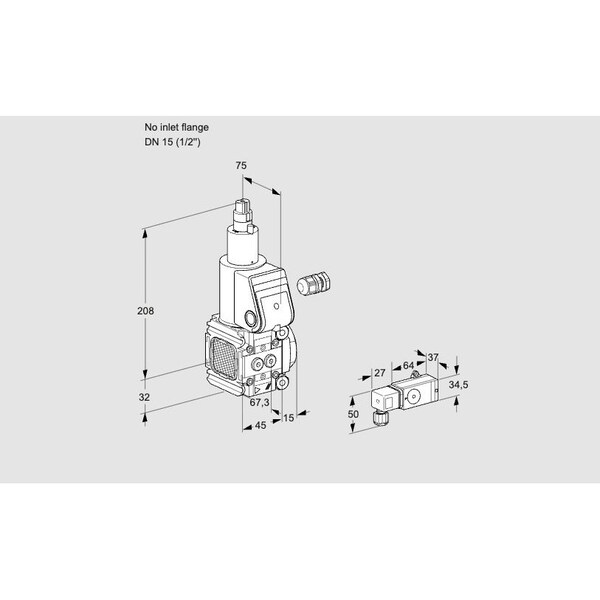

The HONEYWELL KROMSCHRODER VAS1-/15R/LW is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. This valve remains closed when de-energized and includes a pilot lamp and adjustable flow. It is conformant to EN 161 standards, rated for operation at pressures up to 500 mbar, and has obtained EU, FM, and CSA certifications. The unit is suitable for use in systems with requirements up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening & closing or slow opening & quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Protection rating: IP65
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
