Gas Solenoid Valve - DN 100, ISO Flange, 500 mbar, Class A

The HONEYWELL KROMSCHRODER VAS8100F0 is a solenoid valve intended for use in applications requiring automatic shut-off of gas and air. Classified as a Class A valve to EN 161 standards, it remains closed when de-energized and features an ISO flange connection with a nominal size of 100 mm (size 8). The unit rated for operation at pressures up to 500 mbar and includes both pilot lamp indicator and adjustable flow. It carries IP65 ingress protection, EU certification, FM and CSA approvals, and is certified according to SIL 3 and PL e standards.

Key features include:

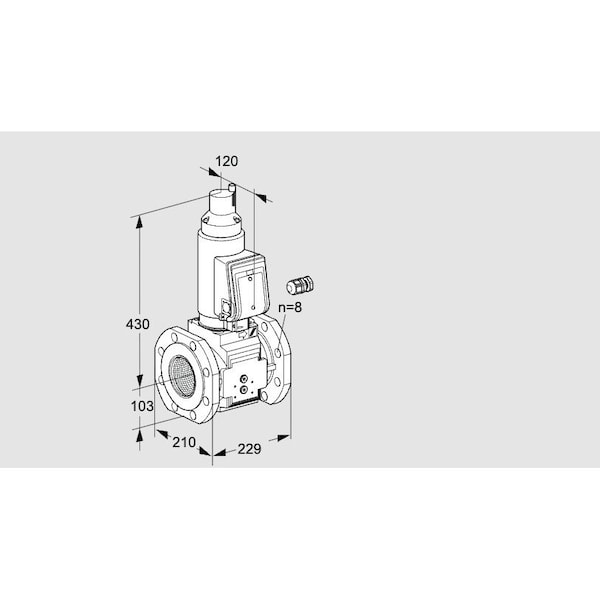

• Size: DN 100 mm (Size 8)
• Connection type: ISO flange
• Maximum operating pressure: 500 mbar
• Electrical options: Available in mains voltages of 24 V DC, 120 V AC, or 230 V AC; terminal electrical connection
• Operation: available with different actuation speed options
• Additional options: Pilot lamp indicator, flow adjustment
• Certifications: EN161 Class A, EU certified, FM approved, CSA approved; suitable for systems requiring SIL 3 or PL e levels
