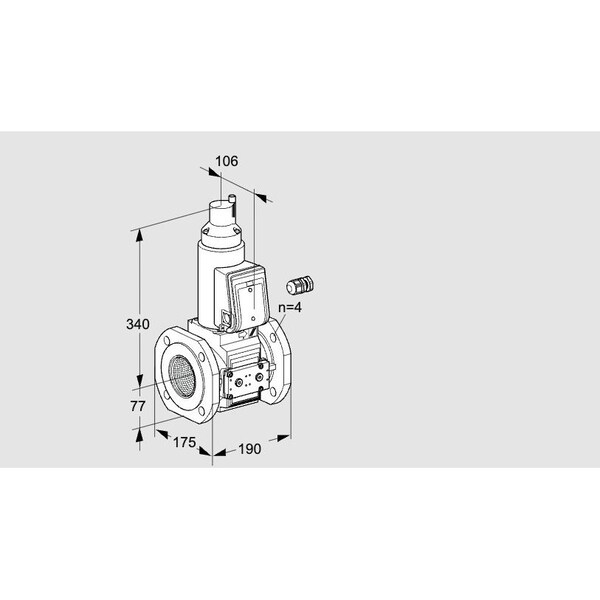

Gas Solenoid Valve - DN 65 mm, ISO Flange, 500 mbar, IP65, Pilot Lamp

The HONEYWELL KROMSCHRODER VAS665F05L is a solenoid valve intended for use in gas and air system shut-off applications. Classified as a Class A valve to EN 161 standards, it operates in a normally closed position when de-energized and supports maximum operating pressures up to 500 mbar. This model features an ISO flange connection with a nominal size of 65 mm, includes a pilot lamp for status indication, and offers flow adjustment capabilities.

Key features include:

• Valve Size: DN 65 mm (Size 6)
• Connection Type: ISO flange
• Maximum Operating Pressure: 500 mbar
• Electrical Protection: IP65 rated enclosure
• Certifications: EU certified; FM and CSA approved
• Operation Modes: Quick opening/closing or slow opening/quick closing options available
• Voltage Options: Compatible with mains voltages of 24 V DC, 120 V AC, or 230 V AC
• Additional Features: Pilot lamp indicator and adjustable flow setting
