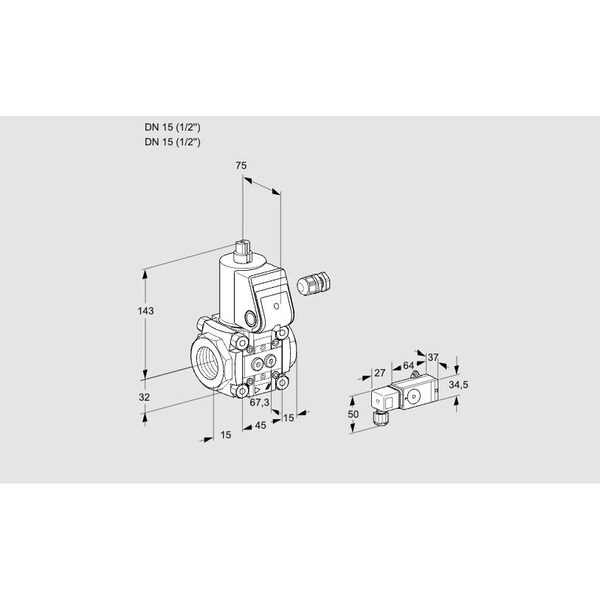

Gas Solenoid Valve - NC, 500 mbar, EN 161, IP65 Rated

The HONEYWELL KROMSCHRODER VAS115R/NW is a Class A solenoid valve conforming to EN 161 standards. It is intended for use in automatic shut-off applications for gas and air, with the valve being normally closed (NC) and opening upon energization. It features a pilot lamp and flow adjustment. It is rated for maximum operating pressure up to 500 mbar, with an IP65 enclosure rating. The product holds EU certification as well as FM and CSA approvals, and it holds certification indicating compliance with SIL 3 and PL e standards.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
